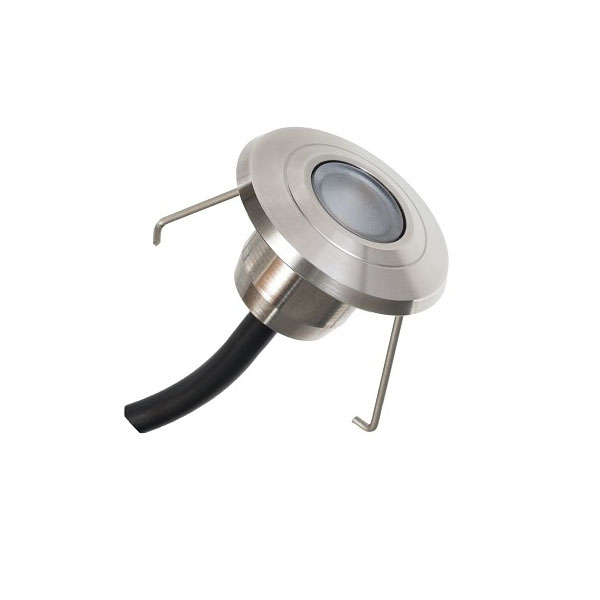

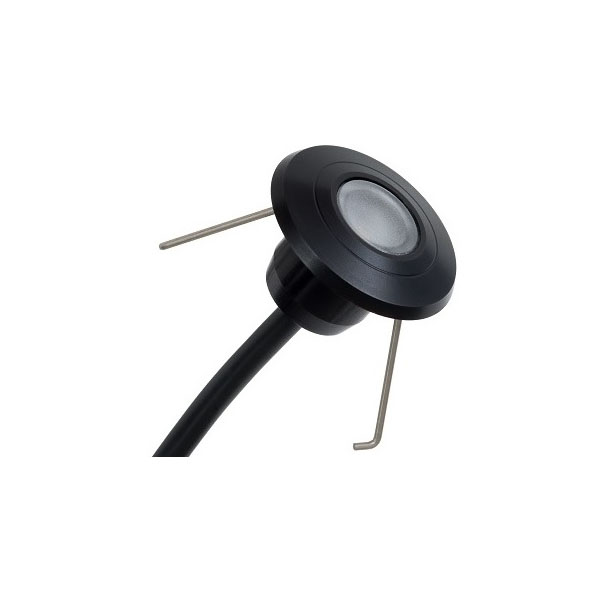

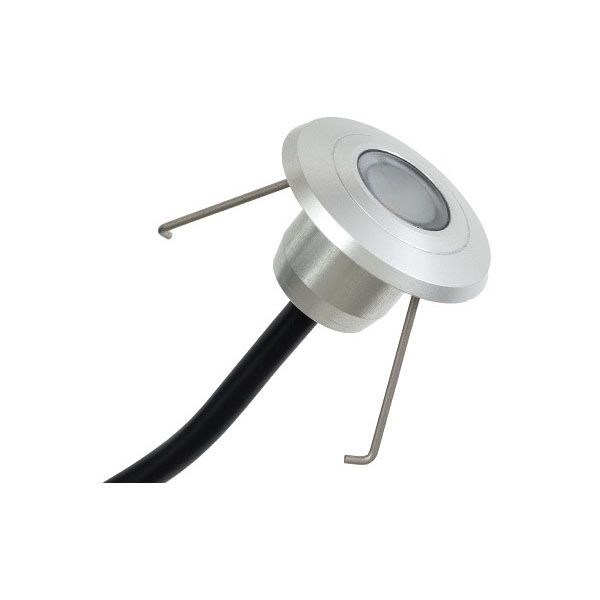

Mini-Lightz Spring Mount

Description

Whether lighting a deck, garden path or bed, stairs, handrails or artwork; at only 1W and ø20mm the Mini-Lightz are tiny but mighty. This little unit puts out a nice, warm bright light – inside or outside.

Applications for this product are limited only by your imagination!

The original Mini-Lightz relied on friction fit into timber, as the popularity for this product grew and it found itself being used inside and installed into jib we needed to come up with a solution to assist with this installation. The Sl211 was born. With the addition of a spring and incorporating the washer we now have the perfect soft lighting for bathrooms and other areas inside the house.

  • Ideal for both indoor and out door use.

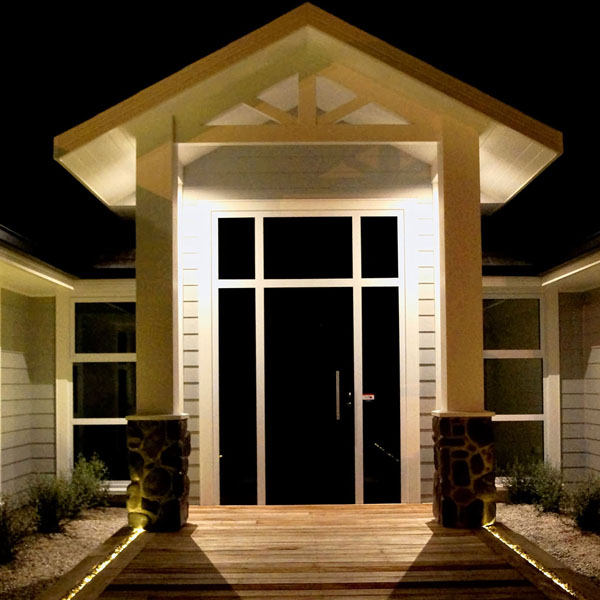

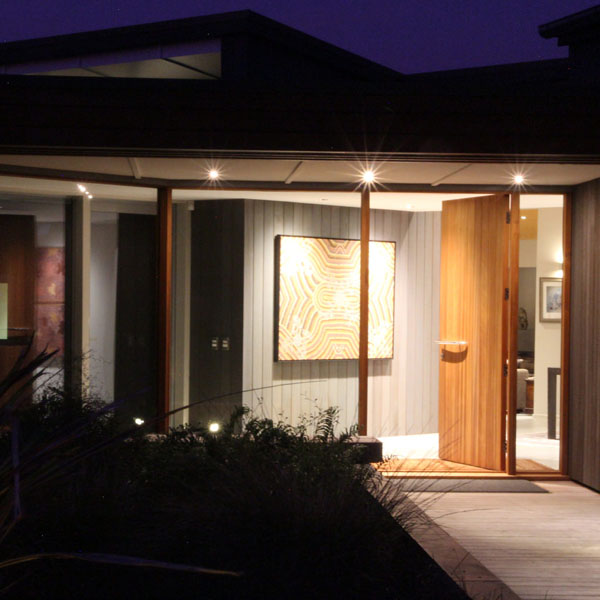

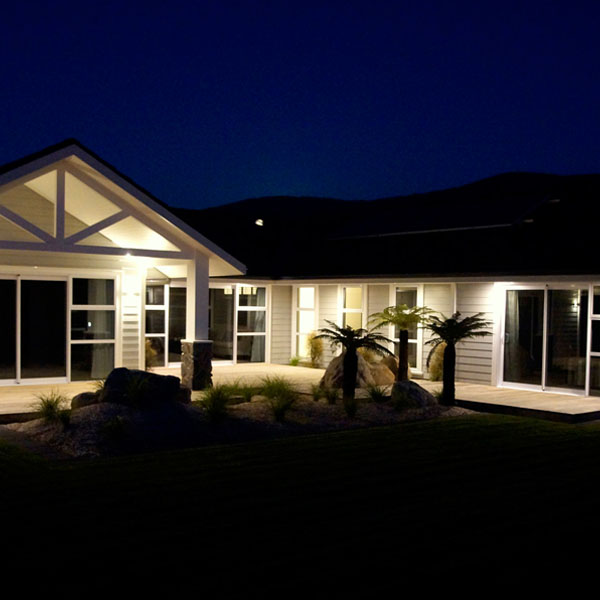

  • INDOOR OR OUTDOOR USE Ideal pathway lighting, garden lighting, recess into soffits, mount into handrails, garden beds,recessed into decking, balustrades or place it inside the house to illuminate hallways, stairways and cabinets.
  • One driver will power up to 8 units wired in series.

dimensions

[image style=”margin:0;” type=”thumbnail” src=”/wp-content/uploads/2018/05/Mini-Lightz-Spring-Mount-Dimension.jpg” alt=Mini-Lightz-Spring-Mount-Dimension”]

Additional information

Type

Mini-Spot Recessed Light

Beam angle

70° (wide), 30° (focused)

Colour temp

2700K, 3000K, 4000K

CRI

80+

Trim colours

Black Anodised Aluminium
Natural Anodised Aluminum
316 Stainless Steel
Copper

Delivered Lumens*

100 Lumen

IP rating

IP67

Classification

IC-F & IC-4

Dimensions

ø 30mm x 18mm deep

Min hole depth

26mm

Cutout

Ø20mm (Spring Mount)

Dimming

Yes – minimum of 4 in a circuit and select dimming driver L05021
No – select non-dimming driver L05020

Driver covered

No

Luminaire power

1W

Forward voltage

3V

Power supply

Constant current 350mA (ordered separately)

Warranty

5 year warranty on luminaire
